BMC SB 25-60 Series Insulators: The Smart Choice for Power Systems

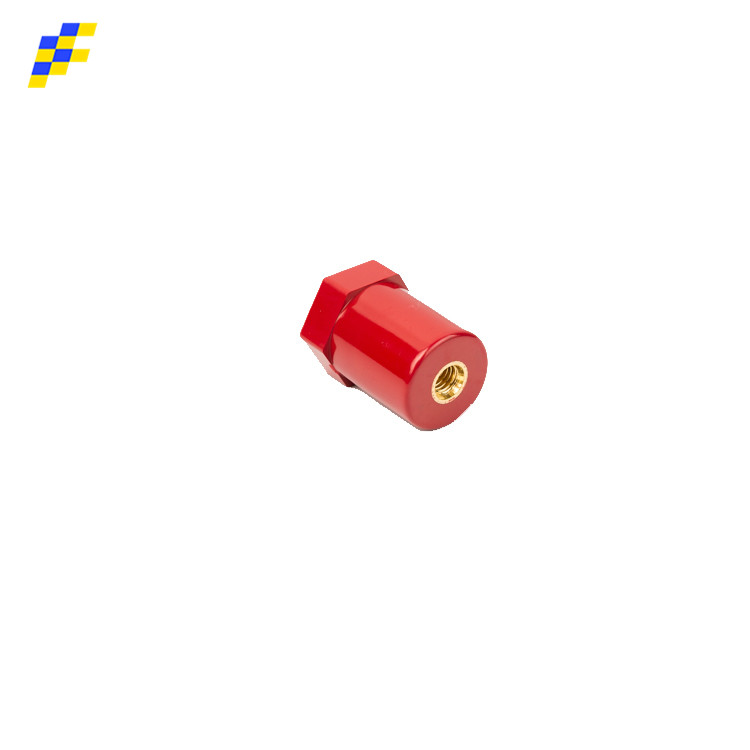

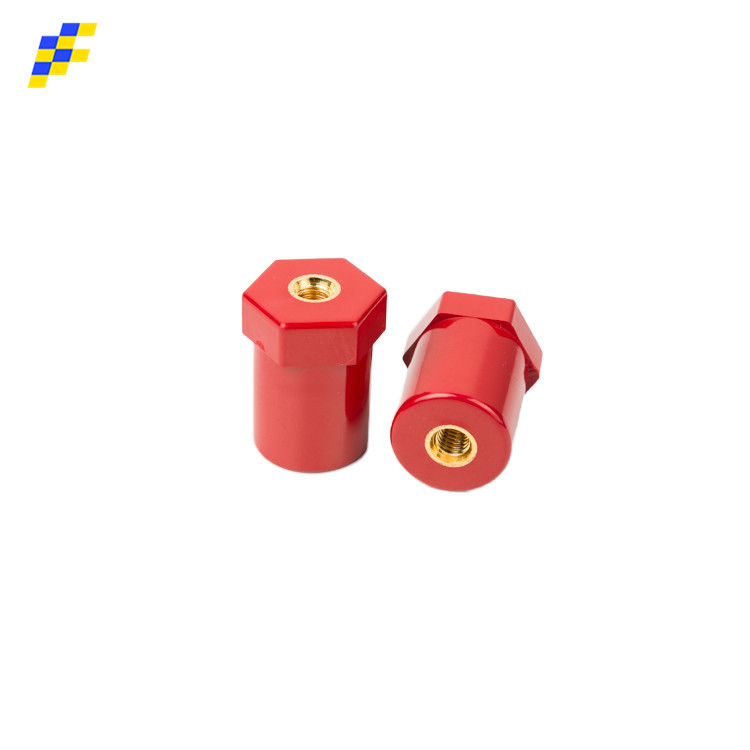

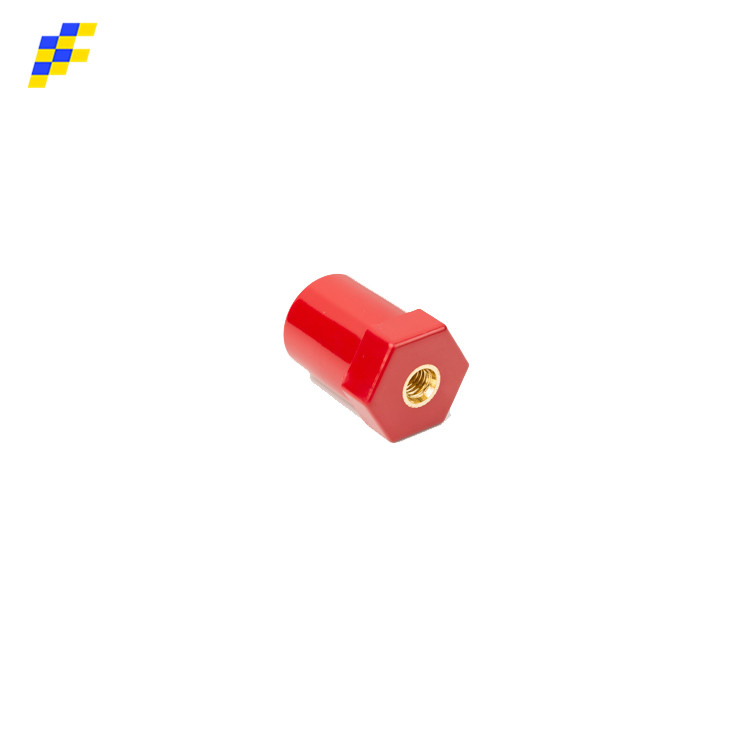

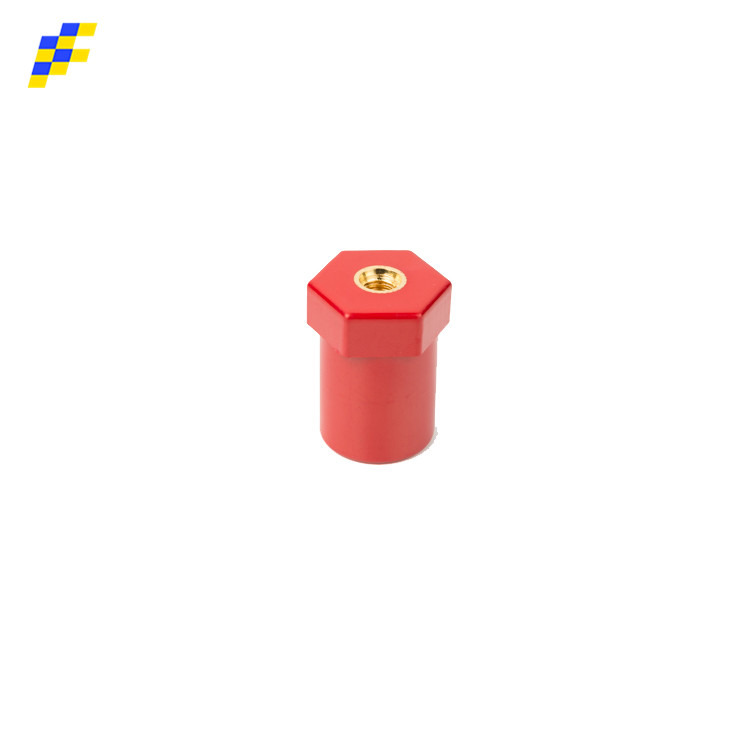

The SB series busbar insulators feature a distinctive design, combining a hexagonal prism at the top with a cylindrical base. This unique structure simplifies the installation process, enabling easy use of a clamping wrench.

These high-quality insulators are extensively used in a range of emerging energy sectors, such as battery packs for new energy vehicles, energy storage systems, and solar inverter systems. With varying installation conditions, customers require insulators that excel in high-temperature resistance, moisture resistance, and long-lasting durability.

To meet these demanding needs, we ensure that our products undergo comprehensive reliability testing, providing detailed performance reports that guarantee the SB series busbar insulators will consistently perform under real-world conditions. We are dedicated to offering solutions that exceed industry expectations, delivering reliable and long-term performance for your energy applications.

product details

Product Selection

Company Video

BMC SB 25-60 Series Insulators: The Smart Choice for Power Systems introduction

The SB series standoff insulators are pivotal in cutting-edge energy sectors, including battery packs for new-energy vehicles, energy storage systems, and photovoltaic inverters.

In new-energy vehicle battery packs, these insulators ensure the safe isolation of circuits, effectively preventing current leakage and maintaining the stable operation of the entire battery system.

Within energy storage systems, the SB series busbar insulators provide robust support, enabling stable performance in complex electrical environments.

As core components of photovoltaic inverters, which convert direct current into alternating current, the SB series low-to-medium voltage insulators effectively isolate circuits, prevent current interference and leakage, and withstand high-temperature conditions. This ensures efficient conversion and stable operation of photovoltaic inverters.

Recognizing the diverse and challenging installation environments faced by our customers—such as outdoor settings with high temperatures and humidity, like photovoltaic power stations in desert regions—we understand the critical need for insulators that offer exceptional high-temperature resistance, moisture resistance, and durability.

To meet these stringent requirements, our company has established a comprehensive and scientific quality inspection system. When customers have concerns or requirements regarding the reliability of our insulators, we conduct a series of targeted reliability tests tailored to their specific needs.

These tests include:

Long-Term Operation Tests in Simulated High-Temperature Environments: By placing the insulators in a high-temperature test chamber with varying temperature gradients and durations, we monitor changes in performance indicators such as insulation resistance and dielectric constant under high-temperature conditions.

Simulated Humidity Environment Tests: Utilizing professional humidity test equipment, we control environmental humidity levels and observe the surface conditions and electrical performance of the insulators under different humidity conditions.

Durability Tests: Simulating current shocks and mechanical vibrations encountered during actual use, we evaluate the performance stability of the insulators over extended periods.

Upon completion of these tests, we provide detailed and accurate reliability test reports, ensuring our insulators meet the highest standards of performance and durability.

BMC SB 25-60 Series Insulators: The Smart Choice for Power Systems specification

Product features(Technical Data)	Meet ROHS 2.0 environmental requirements Colors, inserts, materials can be customized according to customer requirements
Type	SB series（SB-type hexagonal support insulators）
Product height	25-100 mm
Product diameter	25-60mm
Thread	M6-M12
Insert material	brass, steel
Raw material	unsaturated resin (BMC/DMC)
MOQ	100 pcs
Working temperature	-40-140℃
Flame retardant grade	UL94 V0 (3mm)
Hot wire temperature	960℃
Operating voltage (AC)	800-4000V
Working voltage (DC)	1100-5600V
Test items	low and high temperature test, pressure resistance, torque strength, tension, bending force, pressure, insulation resistance, ROHS, flame retardant
Certificates	CE, REACH, ELV, SGS
Quality System	ISO9001, ISO14001, IATF16949

production workshop

Product certification

UL, CE, ROHS, REACH, IATF16949, ISO9001, ISO14001, PSCR

IATF16949

ISO9001

ISO14001

PSCR

ROHS

REACH

Product packaging

Product application cas

Contact Us

SB Series Insulator

1. lnsert conventional materials, such as copper and iron. Stainless steel and aluminum inserts can be customized;

2. Type 2-4 screw length, as shown in figure CLASS1-5; a non-conventional screw length canbe customized；

3. Products in the attached table are conventional products, while the other height size can be customized ；

4. 'BD’ in the attached table means the product's bore depth; it can be customized for other boredepth requirements;

5. 'Tightening torque’ in the attached table means the torque installation, it can be customizedfor a greater torque demand;

6. The nominal voltage in the attached table refers to the lEC: 60355 standard; it can be customized for higher voltage requirements；

7. Actual performance parameters, dimensional tolerances, and appearance colors subject to the specific drawings;

Other sizes can be inquired from customer service

SB 25 Series

Type	thread	Insert	BD	Tightening torque	Height	Nominal Volatage
Insert	Size	material	(mm)	(N.m)	（H）mm	（AC/DC）
SB2025	M6	brass	≥6	5	20	（800/1100）
	M6	steel	≥6	8
	M8	brass	≥6	8
	M8	steel	≥6	10
SB2525	M6	brass	≥8	5	25	（1000/1400）
	M6	steel	≥8	10
	M8	brass	≥8	8
	M8	steel	≥8	12
SB3025	M6	brass	≥10	6	30	（1200/1600）
	M6	steel	≥10	10
	M8	brass	≥10	8
	M8	steel	≥10	12
SB3525	M6	brass	≥10	5	35	（1400/1900）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB4025	M6	brass	≥10	5	40	（1600/2200）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB4525	M6	brass	≥10	5	45	（1800/2500）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB5025	M6	brass	≥10	5	50	（2000/2800）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15

Type	thread		BD	Tightening torque	Height	Nominal Volatage
Insert	Size		(mm)	(N.m)	（H）mm	（AC/DC）
SB5525	M6	brass	≥10	5	55	（2200/3000）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB6025	M6	brass	≥10	5	60	（2400/3300）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB6525	M6	brass	≥10	5	65	（2600/3600）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB7025	M6	brass	≥10	5	70	（2800/3900）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB7525	M6	brass	≥10	5	75	（3000/4200）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB8025	M6	brass	≥10	5	80	（3200/4500）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15

SB 30 Series

Type	thread	Insert	BD	Tightening torque	Height	Nominal Volatage
Insert	Size	material	(mm)	(N.m)	（H）mm	（AC/DC）
SB2530	M6	brass	≥8	5	25	（1000/1400）
	M6	steel	≥8	10
	M8	brass	≥8	8
	M8	steel	≥8	12
SB3030	M6	brass	≥10	6	30	（1200/1600）
	M6	steel	≥10	10
	M8	brass	≥10	8
	M8	steel	≥10	12
SB3530	M6	brass	≥10	5	35	（1400/1900）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB4030	M6	brass	≥10	5	40	（1600/2200）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB4530	M6	brass	≥10	5	45	（1800/2500）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB5030	M6	brass	≥10	5	50	（2000/2800）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB5530	M6	brass	≥10	5	55	（2200/3000）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB6030	M6	brass	≥10	5	60	（2400/3300）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15

Type	thread	Insert	BD	Tightening torque	Height	Nominal Volatage
Insert	Size	material	(mm)	(N.m)	（H）mm	（AC/DC）
SB6530	M6	brass	≥10	5	65	（2600/3600）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB7030	M6	brass	≥10	5	70	（2800/3900）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB7530	M6	brass	≥10	5	75	（3000/4200）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB8030	M6	brass	≥10	5	80	（3200/4500）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB8530	M6	brass	≥10	5	85	（3400/4800）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB9030	M6	brass	≥10	5	90	（3600/5100）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB9530	M6	brass	≥10	5	95	（3800/5400）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15
SB10030	M6	brass	≥10	5	100	（4000/5700）
	M6	steel	≥10	10
	M8	brass	≥10	10
	M8	steel	≥10	15

SB 40 Series

Type	thread	Insert	BD	Tightening torque	Height	Nominal Volatage
Insert	Size	material	(mm)	(N.m)	（H）mm	（AC/DC）
SB3040	M8	brass	≥10	10	30	（1200/1600）
	M8	steel	≥10	20
	M10	brass	≥10	20
	M10	steel	≥10	30
SB3540	M8	brass	≥10	10	35	（1400/1900）
	M8	steel	≥10	20
	M10	brass	≥10	20
	M10	steel	≥10	30
SB4040	M8	brass	≥12	10	40	（1600/2200）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB5040	M8	brass	≥12	10	50	（2000/2800）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB6040	M8	brass	≥12	10	60	（2400/3300）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB7040	M8	brass	≥12	10	70	（2800/3900）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB8040	M8	brass	≥12	10	80	（3200/4500）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB9040	M8	brass	≥12	10	90	（3600/5100）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB10040	M8	brass	≥12	10	100	（4000/5600）
	M8	steel	≥12	20
	M10	brass	≥12	20
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40

SB 50 Series

Type	thread	Insert	BD	Tightening torque	Height	Nominal Volatage
Insert	Size	material	(mm)	(N.m)	（H）mm	（AC/DC）
SB4050	M10	brass	≥12	20	40	（1600/2200）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB5050	M10	brass	≥12	20	50	（2000/2800）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB6050	M10	brass	≥12	20	60	（2400/3300）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB7050	M10	brass	≥12	20	70	（2800/3900）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB8050	M10	brass	≥12	20	80	（3200/4500）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB9050	M10	brass	≥12	20	90	（3600/5100）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB10050	M10	brass	≥12	20	100	（4000/5600）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40

SB 60 Series

Type	thread	Insert	BD	Tightening torque	Height	Nominal Volatage
Insert	Size	material	(mm)	(N.m)	（H）mm	（AC/DC）
SB5060	M10	brass	≥12	20	50	（2000/2800）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB6060	M10	brass	≥12	20	60	（2400/3300）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB7060	M10	brass	≥12	20	70	（2800/3900）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB8060	M10	brass	≥12	20	80	（3200/4500）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB9060	M10	brass	≥12	20	90	（3600/5100）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
SB10060	M10	brass	≥12	20	100	（4000/5600）
	M10	steel	≥12	30
	M12	brass	≥12	30
	M12	steel	≥12	40
